Canned Motor Pumps

Name: Canned Motor Pumps
Brand: FLOWWELL ENGINEERING
Price: 90000 INR
Availability: InStock

Price 90000 INR/ Number

Get a Price/Quote

MOQ : 1 Unit

Canned Motor Pumps Specification

Flow Rate
Up to 300 m/hr

Theory
Centrifugal Pump

Inlet/Outlet
25 mm / 25 mm to 100 mm / 100 mm

Voltage
380V/415V/440V AC, 50Hz/60Hz

Mounting Type
Horizontal Floor Mounted

Speed
Up to 3500 RPM

Frequency
50/60 Hz

Noise Level
Below 75 dB(A)

Head Size
Up to 100 m

Max Suction
Up to 4 m

Discharge Pressure
Up to 10 Bar

Material
SS 304, SS 316, Alloy 20, Hastelloy, Titanium

Structure
Monoblock, Horizontal

Power
0.37 kW to 75 kW

Standard
API 685, ISO 2858

Fuel Type
Electric

Pressure
Up to 10 Bar

Usage
Chemical Transfer, Petrochemical, Pharmaceuticals, Hazardous Liquids

Application
Chemical Processing, Oil & Gas, Pharmaceutical, Nuclear, Food Processing

Suction Type
End Suction

Seals Type
Sealless (No Mechanical Seal)

Pump Type
Canned Motor Pump

Capacity
Up to 300 m/hr

Canned Motor Pumps Trade Information

Minimum Order Quantity
1 Unit

Packaging Details
According to products

Main Domestic Market
All India

About Canned Motor Pumps

Cannned Motor Pump for liquids like ammonia pumping :
Flowwell with thirteen years of experience in pump design and manufacturing, ventured in canned motor pumps to cater the specific industrial needs.

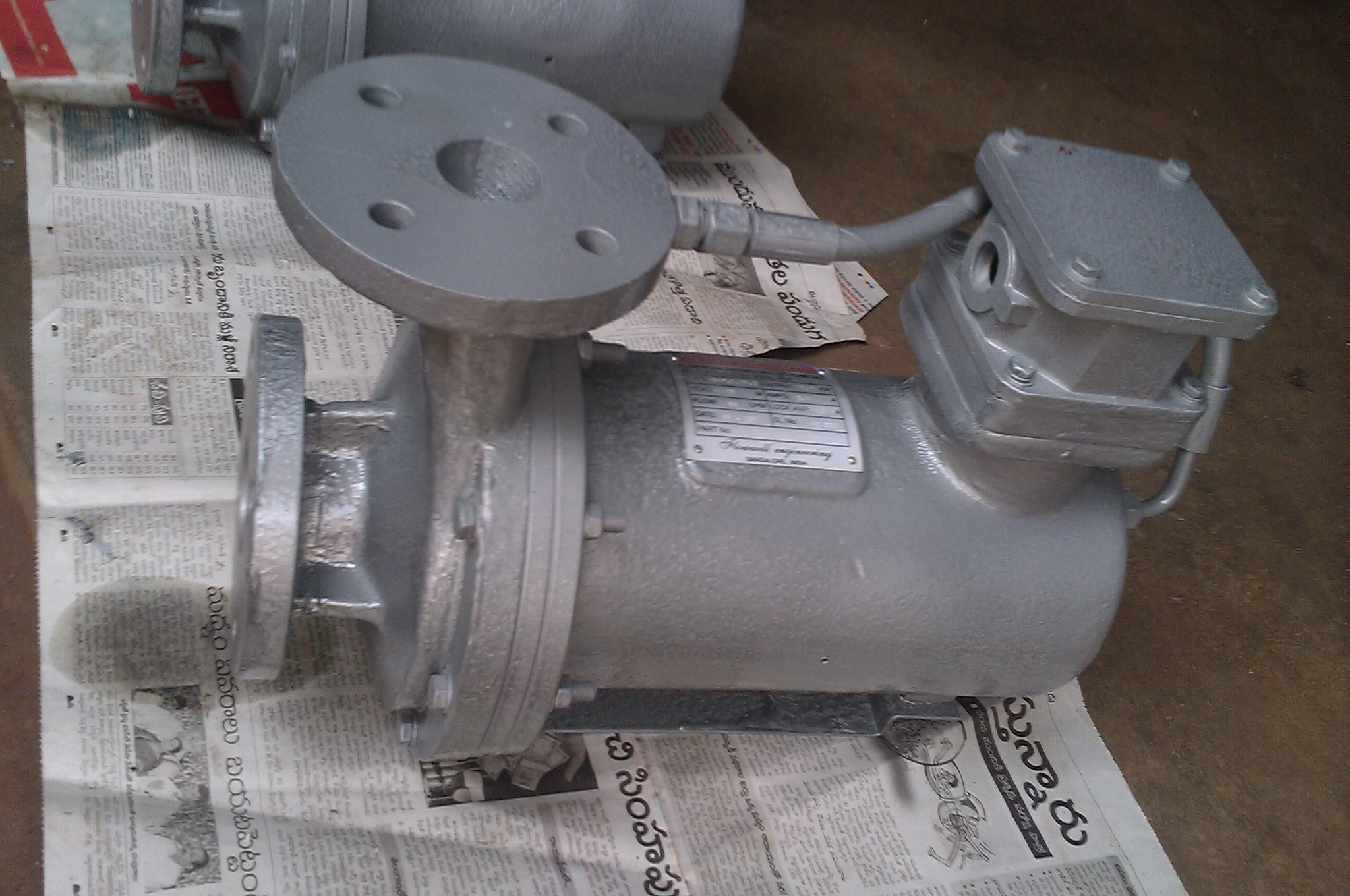

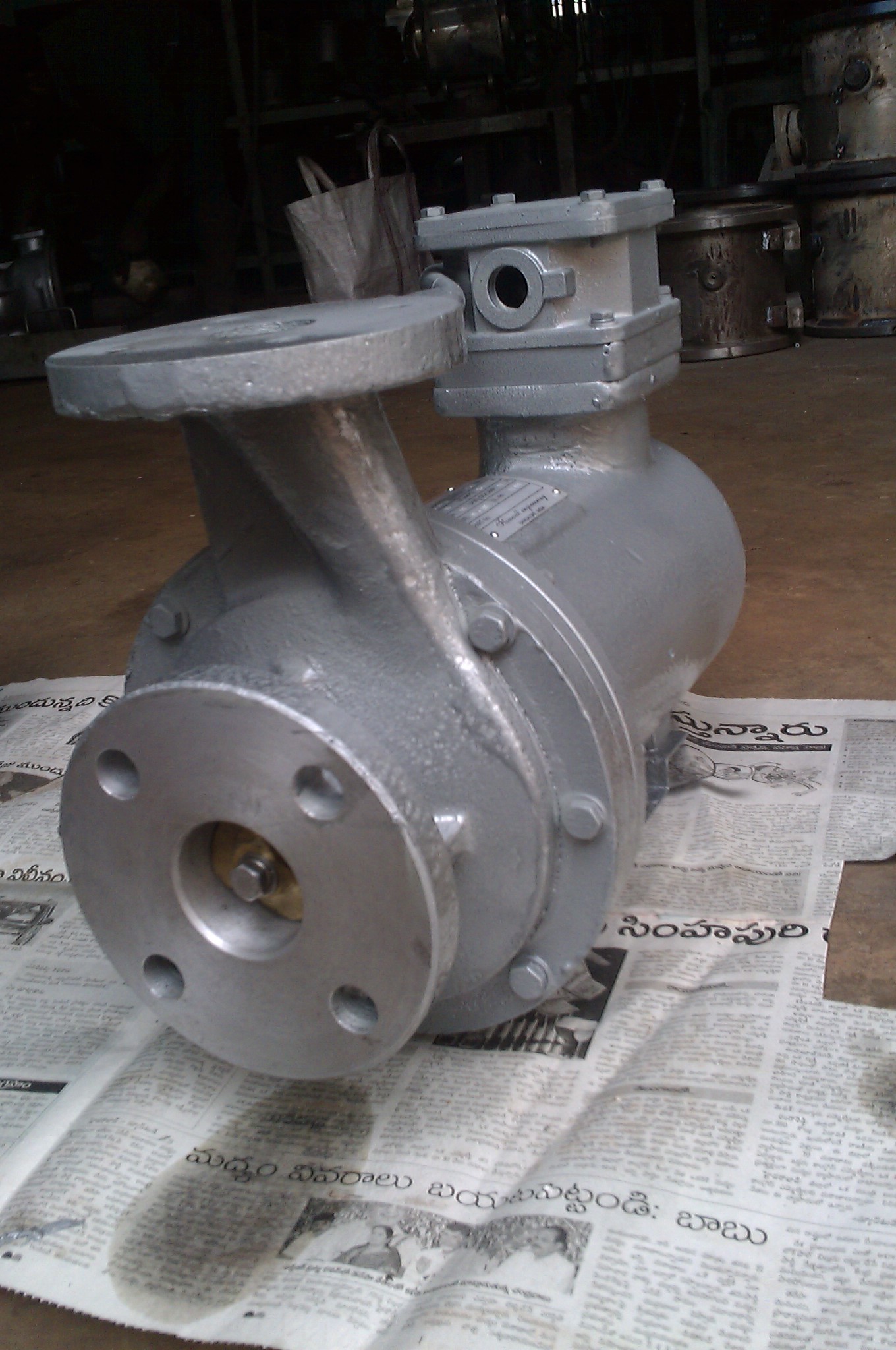

Flowwell Canned Motor pumps are compact in design, Vacuum tight, centrifugal, Monobloc pumpsets suitable to operate in any atmospheric condition.
Can be suited even for submerged operation.

FLOWWELL ENGINEERING, BANGALORE

TECHNICAL DATA OF CANNED MOTOR PUMP


1	TYPE	: CENTRIFUGAL, CANNED MOTOR PUMP

2	MODEL	: CMP.O.18.1/ CMP.O.18.2/ CMP.O.18.3/ CMP.O.18.6.

3	SUCTION X DELIVERY	: 50 X 38

4	HEAD/ DISCHARGE	: 500 to 6000 LPH @ 15 M

5	MOTOR	: 2HP AND 3HP 2POLE, 415 V+ 10% , 3PH, 50HZ, AC

6	FULL LOAD CURRENT	: 3.5 AMPS

7	STARTING CURRENT	: 12 AMPS

8	DUTY	: S1.

9	WINDING CONNECTION	: STAR

10	BEARINGS	: 6304 FAG

11	METHOD OF STARTING	: DOL

12	INSULATION	: CLASS

13	PROTECTION	: IP 55

14	CABLE ENTRY	: 20 MM

15	TOTAL WEIGHT	: 32 KGS. (APX.)

16	G.A. DRG.NO.	: C - 1401

Efficient and Leak-Free Operation

Canned motor pumps utilize a sealless design, which eliminates mechanical seals and the associated risk of leaks, making them optimal for processing hazardous or valuable liquids in sensitive industries. Their robust construction and advanced engineering ensure long-term performance and minimal downtime, even under demanding operating conditions.

Versatile Application Range

These pumps are suitable for various sectors including chemical processing, pharmaceutical, oil & gas, nuclear, and food industries. Their flexibility in flow rate and head size makes them adaptable to diverse transfer requirements, while corrosion-resistant materials ensure durability, even when moving aggressive or toxic substances.

FAQs of Canned Motor Pumps:

Q: How do canned motor pumps achieve leak-free operation in hazardous liquid applications?

A: Canned motor pumps are designed without mechanical seals, using a hermetically sealed motor and pump housing. This sealless configuration prevents fluid leakage, ensuring safe operation in applications involving hazardous or toxic liquids.

Q: What materials are available for canned motor pumps and how do I select the right one?

A: Canned motor pumps are available in materials like SS 304, SS 316, Alloy 20, Hastelloy, and Titanium. The optimal material depends on the chemical compatibility with your process fluids, the fluids temperature, and the risk of corrosion or abrasion in your application.

Q: When should I choose a canned motor pump over a mechanically sealed pump?

A: Select canned motor pumps when you need superior leak protection, especially while handling dangerous, volatile, or high-value liquids. They are preferred where safety, environmental compliance, or product purity are critical.

Q: Where are these pumps most commonly installed?

A: These pumps are frequently installed in facilities that process chemicals, pharmaceuticals, oil & gas, nuclear materials, and food products. Their horizontal, floor-mounted design fits well into industrial and plant environments.

Q: What is the process for installing and maintaining a canned motor pump?

A: Installation involves aligning the horizontal monoblock pump on a floor mount, checking electrical connections to the supply voltage (380V/415V/440V AC), and ensuring proper inlet/outlet setup. Maintenance is simplified due to the absence of seals, with periodic checks on bearings and stator cooling system recommended.

Q: How are these pumps beneficial for challenging industrial applications?

A: These pumps offer enhanced safety due to zero-leakage construction and are built for high reliability, reducing both operational risks and maintenance downtime, especially in critical chemical and hazardous material processes.
