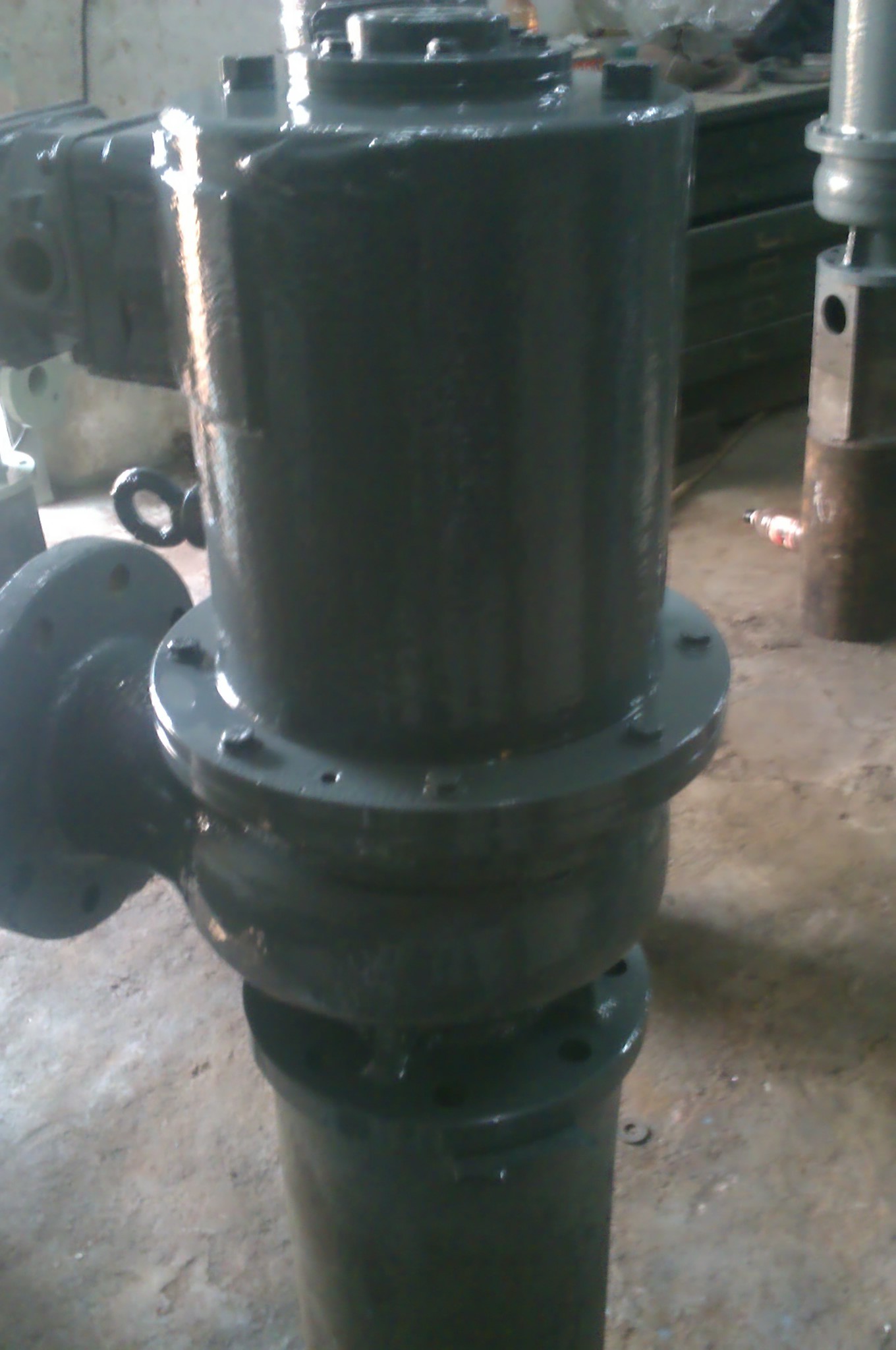

Canned Pump

Name: Canned Pump
Brand: FLOWWELL ENGINEERING
Price: 135000.0 INR
Availability: InStock

Price 135000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Canned Pump Specification

Max Suction
Up to 8 meters

Voltage
380V / 415V / 220V

Frequency
50/60 Hz

Speed
2800/3500 RPM

Theory
Centrifugal Pump

Noise Level
Low (<75 dB)

Flow Rate
3~100 m/h

Mounting Type
Baseplate Mounted

Working Temperature
Up to 150C

Control System
Automatic / Manual

Head Size
10~80 m

Discharge Pressure
2.0 MPa max

Inlet/Outlet
DN 25~100 mm

Material
Stainless Steel / Cast Iron / Carbon Steel

Structure
Single Stage, Canned Motor

Power
0.75~37 kW

Standard
ISO / API 685

Fuel Type
Electric

Pressure
Up to 2.5 MPa

Usage
Industrial, Chemical, Process

Application
Chemical Industry, Petrochemical, Pharmaceutical

Suction Type
Horizontal

Seals Type
Mechanical Seal (Canned Motor Type)

Pump Type
Sealless Canned Motor Pump

Capacity
Customizable

Canned Pump Trade Information

Minimum Order Quantity
1 Unit

Packaging Details
According to products

Main Domestic Market
All India

About Canned Pump

Since our inception in the year 2003, we are the leading manufacturer and exporter of a qualitative range of Heavy Duty Canned Motor Pump. This pump is well manufactured at our sound production unit by making use of quality tested materials in accordance with the industry preset standards. Offered pump is suitable for shock grade encountered on naval ships. Clients can avail this range of Heavy Duty Canned Motor Pump from us at affordable prices.

Features:

Easy to install
Strong structure
Longer service life


FLOWWELL ENGINEERING, BANGALORE

TECHNICAL DATA OF CANNED MOTOR PUMP, MODEL : CMP.O.18.25


1	TYPE	: CENTRIFUGAL, CANNED MOTOR PUMP

2	MODEL	: CMP.O.18.25

3	SUCTION X DELIVERY	: 100 X 80

4	HEAD/ DISCHARGE	: 12001 to 16000 LPH @ 10 M
		: 16001 to 25000 LPH @ 10 M

5	MOTOR	: 7.5HP 2POLE, 415 V+ 10% , 3PH, 50HZ, AC
		: 12HP 2POLE, 415 V+ 10% , 3PH, 50HZ, AC

6	FULL LOAD CURRENT	: 12 AMPS / 17 AMPS

7	STARTING CURRENT	: 30 AMPS / 40 AMPS

8	DUTY	: S1.

9	WINDING CONNECTION	: STAR

10	BEARINGS	: 6306

11	METHOD OF STARTING	: DOL

12	INSULATION	: CLASSF

13	PROTECTION	: IP 55

14	CABLE ENTRY	: 20 MM

15	TOTAL WEIGHT	: 85 KGS. (APX.)

16	G.A. DRG.NO.	: C - 1551

Advanced Sealless Technology

Our canned motor pumps employ a sealless design, eliminating common leakage issues associated with traditional shaft seals. This makes them especially suitable for transporting hazardous or valuable chemicals in the chemical, petrochemical, and pharmaceutical industries. The integrated structure enhances operational reliability while reducing maintenance needs.

Versatile Operational Range

Designed for flexibility, these pumps function at voltages of 220V, 380V, or 415V and handle flows from 3 to 100 m/h. They can manage head requirements up to 80 meters and suction up to 8 meters, catering to both standard and demanding industrial processes. Materials like stainless steel, cast iron, and carbon steel ensure robust performance for diverse applications.

Premium Safety and Compliance

Our pumps are manufactured according to ISO and API 685 standards, providing outstanding safety and reliability. The maximum working temperature reaches 150C, and the pumps can sustain pressures up to 2.5 MPa. The low noise level (<75 dB) and baseplate mounting make them suitable for confined or sensitive environments.

FAQs of Canned Pump:

Q: How does a canned motor centrifugal pump differ from traditional pumps?

A: Canned motor centrifugal pumps feature a sealless design where the motor and pump are integrated into a single, hermetically-sealed unit. This eliminates the need for mechanical shaft seals, reducing the risk of leaks and minimizing maintenance, especially when handling hazardous or corrosive fluids.

Q: What industrial applications are these pumps best suited for?

A: These pumps are ideal for use in chemical, petrochemical, and pharmaceutical industries where leak prevention, high reliability, and robust construction are essential. Their ability to handle aggressive chemicals, elevated temperatures, and varying pressures makes them suitable for diverse process requirements.

Q: When should I choose a stainless steel, cast iron, or carbon steel construction?

A: Selecting the appropriate construction material depends on the fluids properties and operating conditions. Stainless steel is recommended for corrosive or highly pure substances, cast iron for general industrial fluids, and carbon steel for processes where strength and toughness are required.

Q: Where can these pumps be installed, and what are the mounting options?

A: Our canned motor pumps are baseplate-mounted, making them suitable for installation in industrial plants, chemical facilities, or processing units. The horizontal suction design allows for easy integration into existing pipeline systems.

Q: What is the process for customizing flow rate or head size to suit specific requirements?

A: Customization involves assessing your applications required flow rate and pressure (head). We can tailor pump performance parameters within the range of 3 to 100 m/h for flow and 10 to 80 meters for head, ensuring optimal fit for your process. Reach out with your specifications for detailed assistance.

Q: How does the automatic/manual control system benefit operational efficiency?

A: The pumps can be operated in fully automatic or manual mode. Automatic control streamlines process management, minimizes human intervention, and enhances safety by monitoring operational variables, while manual operation allows flexibility for specialized or batch processes.

Q: What are the benefits of choosing a canned motor pump over other types for chemical industry applications?

A: Canned motor pumps provide enhanced safety through leak-free operation, high resistance to corrosive chemicals, low noise, and minimal maintenance. Compliance with ISO/API 685 standards ensures reliable and efficient performance, making them a preferred choice for sensitive industrial environments.
