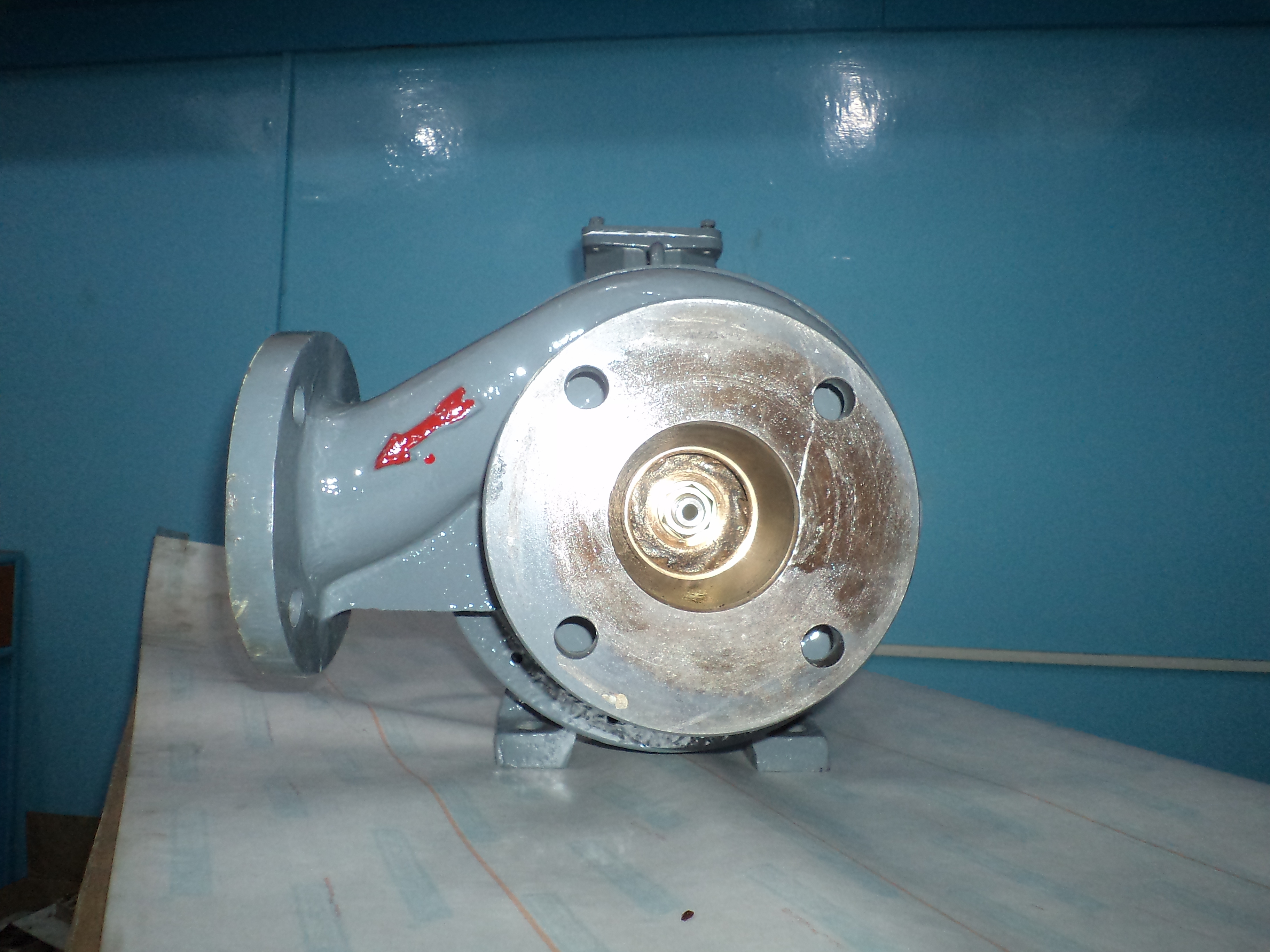

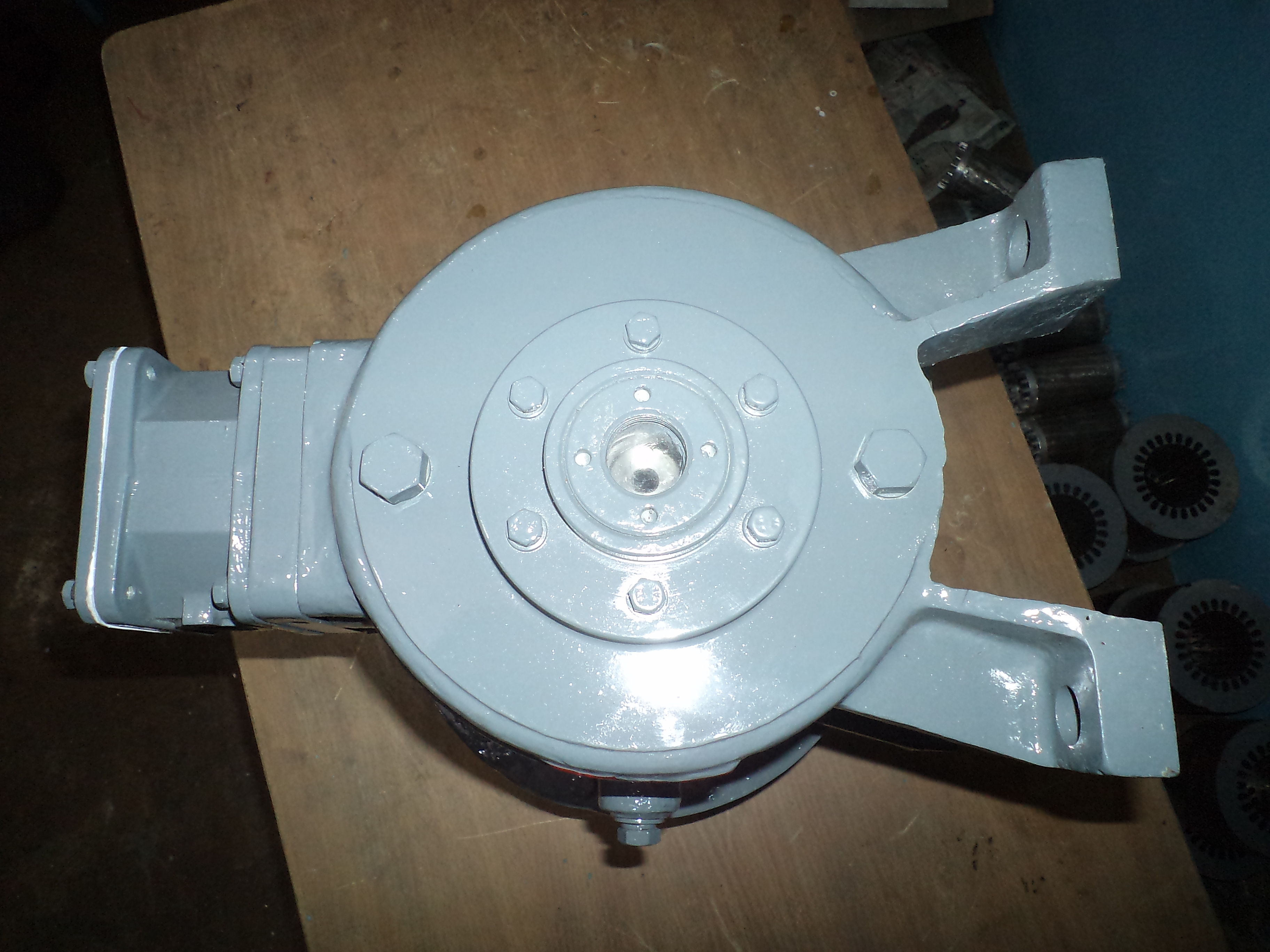

Transformer Oil Pumps

Name: Transformer Oil Pumps
Brand: FLOWWELL ENGINEERING
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Transformer Oil Pumps Specification

Theory
Centrifugal Pump

Control System
Manual/Automatic/PLC Compatible

Caliber
DN40 to DN80

Inlet/Outlet
1.5 to 4 BSP/NPT Threaded or Flanged

Max Suction
up to 7 meters

Mounting Type
Vertical/Horizontal

Speed
1450/2900 rpm

Frequency
50/60 Hz

Noise Level
70 dB

Voltage
230/415 V AC, 50 Hz

Material
Cast Iron/Carbon Steel/Stainless Steel

Structure
Single/Multistage

Power
0.75 kW to 7.5 kW

Standard
IS, IEC Compliance

Fuel Type
Electric

Pressure
Upto 4 Bar

Usage
Transformer Oil Circulation

Application
Power Transformers, Distribution Transformers

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Pump Type
Oil Transfer/Inline Pump

Capacity
Upto 50 m/hr

Transformer Oil Pumps Trade Information

Minimum Order Quantity
1 Unit

Packaging Details
According to products

Main Domestic Market
All India

About Transformer Oil Pumps

Being a quality driven firm, we are dedicated towards manufacturing and exporting an excellent range of Transformer Oil Pumps. These pumps are ideal for commercial sectors, mechanical and electronic industries and finds best applications in electro-chemical processes which include anodizing, plating and hydrogenation. This range of Transformer Oil Pumps has become very popular among our clients due to their high performance.

Key Features:

Easy installation
Excellent functioning
Less maintenance

Further Details:


FLOWWELL ENGINEERING, BANGALORE

	TECHNICAL DATA OF TRANSFORMER OIL PUMP, MODEL : OP.1.5.R

	*Single Phase*
1	TYPE	: CENTRIFUGAL, TRANSAFORMER OIL PUMP

2	MODEL	: OP.1.5.R

3	SUCTION X DELIVERY	76 x 63.5

4	HEAD/ DISCHARGE	: 400 LPM @ 7.3 8 M.

5	MOTOR	: 1.5HP 2POLE, 240 V+ 22.5% , 1PH, 50HZ, AC

6	FULL LOAD CURRENT	: 7 AMPS AT 240V

7	STARTING CURRENT	: 28 AMPS

8	DUTY	: S1.

9	WINDING CONNECTION	A4 - NEGATIVE, GA1 - POSITIVE

10	BEARINGS	6305 ZZ, only FAG

11	METHOD OF STARTING	: Capacitor 40 MFD , 500 V, AC

12	INSULATION	: CLASSF

13	PROTECTION	: IP 55

14	CABLE ENTRY	: 1 CONDUIT THREADS

15	TOTAL WEIGHT	: 72 KGS. (APX.)

16	G.A. DRG.NO.	: OP 5101

Engineered for Transformer Oil Circulation

These transformer oil pumps are specifically designed to support the vital task of circulating oil within power and distribution transformers. This ensures efficient cooling and insulation, prolonging transformer life and improving operational reliability. With compliance to IS and IEC standards, users can expect consistent performance and easy integration into existing systems.

Versatile Installation and Operational Flexibility

Available in various materials (cast iron, carbon steel, stainless steel), mounting types (vertical or horizontal), and a wide range of inlet/outlet configurations, these pumps suit different site requirements. They support both manual and automated control, including PLC compatibility, for greater operational flexibility in industrial settings.

Reliable Performance and Low Maintenance

With a robust mechanical seal, high suction capacity (up to 7 meters), and low noise operation (70 dB), these pumps deliver dependable performance. Their centrifugal and positive displacement mechanisms make them suitable for both transfer and inline applications, helping to reduce downtime and simplify maintenance processes.

FAQs of Transformer Oil Pumps:

Q: How do transformer oil pumps operate in power transformers?

A: Transformer oil pumps use centrifugal or positive displacement principles to circulate insulating oil within the transformer, ensuring even distribution of heat and maintaining temperature stability. This supports optimal transformer function and longevity.

Q: What are the benefits of using a mechanical seal in these pumps?

A: Mechanical seals minimize oil leakage and reduce maintenance needs, significantly improving the pumps reliability and overall efficiency. They also enhance operational safety by preventing contamination.

Q: When should a transformer oil pump be serviced or replaced?

A: Regular inspections should be carried out as per the manufacturers recommendations or IEC standards, typically annually. Pumps showing reduced flow rates, unusual noise, or visible oil leaks should be serviced promptly to prevent transformer damage.

Q: Where can these transformer oil pumps be mounted within a transformer system?

A: These pumps are designed for flexible installation and can be mounted either vertically or horizontally, depending on the layout of the transformer and the specific site conditions.

Q: What is the process for selecting the right pump model for my transformer application?

A: Selection depends on factors like transformer size, required oil flow rate (up to 50 m/hr), installation type (vertical/horizontal), desired pressure (up to 4 bar), and control requirements (manual, automatic, PLC). Consulting with the manufacturer ensures the best fit for your needs.

Q: How does the pumps compliance with IS and IEC standards benefit the user?

A: Compliance with IS and IEC standards guarantees product safety, reliability, and interoperability within a wide range of power equipment, offering peace of mind and consistent quality to users.

Q: What are the typical applications for these transformer oil pumps?

A: These pumps are primarily used in power and distribution transformers for oil transfer and inline circulation, supporting electrical grids, substations, and large-scale power infrastructure across both industrial and utility sectors.
